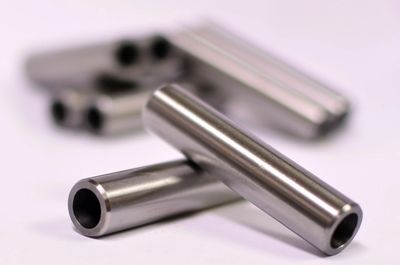

VALVE GUIDES
Pick the Valve Guide that can stand up to the heat!
Maganese Silicon Aluminum Bronze is by far the most superior valve guide material available today. It's tough and ductile, to resist cracking and corrision. It also reduces friction and insures high lubrication retention. And it retains these qualities at today's elevated engine temperatures.
MANGANESE-SILICON-ALUMINUM-BRONZE
I.D. O.D. LENGTH IN/EX ERSCO#
.2500 .4390 2.310 BOTH 08002
.3095 .5020 2.375 BOTH 08042
.3095 .5020 2.875 BOTH 08043
.3100 .5020 1.875 BOTH 08128
.3100 .5020 2.375 BOTH 08140
.3110 .4390 2.280 BOTH 08026
.3110 .4390 2.500 BOTH 08001
.3110 .4390 2.875 BOTH 08038
.3110 .4390 3.065 BOTH 08032
.3110 .5020 1.875 BOTH 08028
.3110 .5020 2.375 BOTH 08142
.3110 .5020 2.875 BOTH 08129
.3120 .4395 1.875 BOTH 08020
.3120 .5020 2.375 BOTH 08040
.3120 .5020 2.875 BOTH 08029
.3135 .4390 1.815 BOTH 08018
.3135 .4390 2.065 BOTH 08034
.3410 .5020 2.125 BOTH 08127
.3410 .5020 2.250 BOTH 08105
.3410 .5020 2.375 BOTH 08106
.3410 .5020 2.500 BOTH 08119
.3410 .5020 2.625 BOTH 08107
.3410 .5020 2.875 BOTH 08112
.3410 .5650 2.625 BOTH 08151
.3420 .5020 2.125 BOTH 08227
.3420 .5020 2.250 BOTH 08205
.3420 .5020 2.375 BOTH 08206
.3420 .5020 2.500 BOTH 08219
.3420 .5020 2.750 IN 08025
.3420 .5020 3.065 BOTH 08024
.3420 .5650 2.625 BOTH 08051
.3425 .5020 2.200 IN 08030
.3425 .5020 2.375 EX 08031
.3430 .5020 2.125 BOTH 08027
.3430 .5020 2.250 BOTH 08005*
.3430 .5020 2.375 BOTH 08006*
.3430 .5020 2.500 BOTH 08019
.3430 .5020 2.625 BOTH 08007
.3430 .5020 2.875 BOTH 08012
.3430 .5020 3.125 BOTH 08070
.3430 .5650 2.625 BOTH 08351
.3440 .5020 2.125 BOTH 08427
.3440 .5020 2.250 BOTH 08405
.3440 .5020 2.375 BOTH 08406
.3440 .5020 2.500 BOTH 08419
.3440 .5650 2.625 BOTH 08451
.3710 .5020 2.125 BOTH 08115
.3710 .5020 2.375 BOTH 08109
.3710 .5020 2.500 BOTH 08121
.3710 .5020 2.750 BOTH 08111
.3710 .5650 2.625 BOTH 08152
.3720 .5020 2.375 BOTH 08009*
.3720 .5020 2.500 BOTH 08221
.3720 .5020 2.625 BOTH 08041
.3720 .5650 2.625 BOTH 08052
.3725 .5020 2.750 BOTH 08011
.3730 .5020 2.500 BOTH 08321
.3730 .5650 2.625 BOTH 08352
.3730 .6260 2.435 IN 08825*
.3730 .6210 2.565 EX 08826*
.3735 .5020 2.375 BOTH 08017
.3735 .5020 2.625 BOTH 08016*
.3740 .5020 2.125 BOTH 08015
.3740 .5020 2.500 BOTH 08021
.3740 .5020 2.750 BOTH 08023
.3740 .5020 3.065 BOTH 08033
.3740 .5650 2.625 BOTH 08452
.3750 .5020 2.625 BOTH 08516
.4365 .6270 2.500 EX 08010
.4365 .6270 2.875 EX 08035
.4365 .6270 3.000 BOTH 08039
.4365 .6270 3.125 EX 08022
.4365 .6270 3.250 EX 08037
.4375 .6270 2.625 BOTH 08008
.4375 .6270 2.750 BOTH 08014
* ALSO AVAILABLE IN GROOVED I.D. (ADD SUFFIX G TO GUIDE NUMBER)
VALVE GUIDES - HARDENED VALVE GUIDES
Premium quality cast iron(alloyed with chrome, moly, nickel & copper) and heat-treated to Rockwell 30 "C". Incorporated into the guide is a spiral-grooved lubrication design, which produces the ultimate in wear resistance. This is far superior to any guide material available. It is a proven material, that has been used for years in severe, heavy, or high duty applications. They are the perfect choice for engines prone to wear due to high combustion chamber temperatures. These guides may require reaming or honing for slightly more stem clearance(.0005" to .0015"). We recommend using a wider valve seat contact angle, to cool the valve and reduce stem expansion: Min: .080" to Max: .120" seat width. Add an I.D. Chamfer(approx. 1/16" x 10 to 30 degrees) or counterbore to the I.D. of the combustion chamber end for scuff/seizure resistance.
O.E. TYPE OIL SEAL RECOMMENDED
ERSCO# I.D. O.D. LENGTH
02279 5/16" .312 .439 2.188(2-3/16")
02280 .312 .439 2.875(2-7/8")
02276 .312 .502 2.281(2-9/32")
02274 11/32" .343 .502 2.500(2-1/2")
02274+2 .343 .504 2.500(2-1/2")
02283 11/32" .344 .502 2.250(2-1/4')
02281 .344 .502 3.063(3-1/16")
02275 3/8" .373 .502 2.625(2-5/8")
02275+2 .373 .504 2.625(2-5/8")
02284 3/8" .374 .502 2.375(2-3/8")
02282 .374 .502 3.063(3-1/16")
02285 .374 .620 2.625(2-5/8")
BIG BLOCK CHEVY-STEPPED O.D., WATER COOLED EXHAUST
UNIVERSAL VALVE GUIDES
CAST IRON CAST IRON BRONZE
SPIRALED I.D. SMOOTH I.D. SMOOTH I.D. O.D. LENGTH
07001 05001 08001 5/16" .312 .439 2.500(2-1/2')
07020 05020 08020 .312 .439 1.875(1-7/8")
07026 05026 08026 .312 .439 2.281(2-9/32")
07040 05040 08040 .312 .502 2.281(2-9/32")
07025 05025 08025 11/32" .342 .502 2.750(2-3/4')
07024 05024 08024 .342 .502 3.063(3-1/16")
07005 05005 08005 11/32" .344 .502 2.250(2-1/4")
07006 05006 08006 .344 .502 2.375(2-3/8")
07007 05007 08007 .344 .502 2.625(2-5/8")
07012 05012 08012 .344 .502 2.875(2-7/8")
07019 05019 08019 .344 .502 2.500(2-1/2")
07027 05027 08027 .344 .502 2.125(2-1/8")
07009 05009 08009 3/8" .372 .502 2.375(2-3/8")
07017 05017 08017 3/8" .373 .502 2.375(2-3/8")
07016 05016 08016 .373 .502 2.625(2-5/8")
07011 05011 08011 .373 .502 2.750(2-3/4")
07021 05021 08021 3/8" .374 .502 2.500(2-1/2")
07023 05023 08023 .374 .502 2.750(2-3/4")
07010 05010 08010 7/16" .436 .627 2.500(2-1/2")
07022 05022 08022 .436 .627 3.125(3-1/8")
07008 05008 08008 .437 .627 2.625(2-5/8")
07014 05014 08014 .437 .627 2.750(2-3/4")
