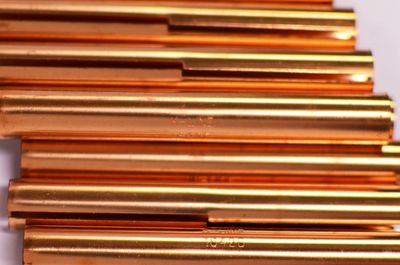

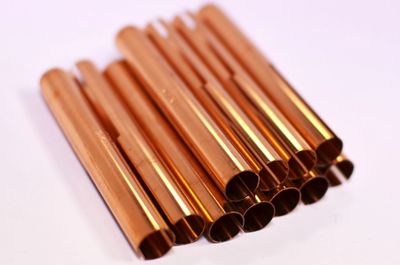

Phosphor bronze valve guide-liner

POSITIVE ECONOMICAL REPLACEMENT OF WORN GUIDE I.D.'S ON PASSENGER CAR, FOREIGN CAR, TRUCK AND INDUSTRIAL ENGINES.

Today there is an alternative to boring out cylinder heads for 1/2" O.D. guides which possesses many advantages. It is the K-Line .030 Phospher Bronze Valve Guide-Liner.

The Guide Liner is made of spring tempered Phospher-Bronze which is an anti-seizing, anti-wear, high strength-to-weight ratio material. It is more dense than cast iron, has a higher rate of Thermal Conductivity, a low Coefficient of friction, and insures High Lubrication Retention. These are just a few of the advantageous physical properties which translate into better guide life.

ERSCO#       SIZE        LENGTH

KL-1840         5/16          3-1/16

KL-1841          11/32         3-1/16

KL-1842          3/8           3-1/16

KL-1843          7/16          3-1/16

KL-1849       6.6MM       2-1/2

KL-1850         7MM        2-1/2

KL-1851          8MM        2-1/2

KL-1852         9MM        2-3/4

KL-1853        10MM        2-1/2

KL-1854        11MM         2-1/2

Special O.D. Guide-Liners to repair oversized or damaged standard thin-wall guide-liner bores. Maximum bore or hole diameter for proper installation is: 5/16-.344, 11/32-.375 and 3/8-.406.

ERSCO#       SIZE        LENGTH

KL-1839          5/16          3-1/16

KL-1860         11/32          3-1/16

KL-1861           3/8            3-1/16

Use for special applications including valve conversions.

ERSCO#        SIZE        LENGTH

KL-1844          5/16          3-1/8

KL-1845         11/32           3-1/8

KL-1846           3/8           3-1/8

Includes 3 ball broaches for sizing the Guide-Liner I.D. within seconds, eliminating reaming or honing. Use with UNIVERSAL Spiral or Smooth Guide-Liners.

These kits are designed for the rebuilder who prefers to spiral and finish ream the Guide-Liner instead to the ball broach method. Use with UNIVERSAL Smooth Guide-Liners.

These oils are separately formulated for guide knurling and finish reaming. Reamer and arbor life will be extended if the proper amount and type of oil is used. The Arbor-Lube is designed for knurling cast iron guides and helps the arbor raise metal further.

Bronze-Lube should be used on bronze Guide-Liners, but can also be used on cast iron guides.

ARBOR-LUBE                 BRONZE-LUBE

KL-1220   1/2 Pint

KL-1221    Pint                   KL-1224    Pint

KL-1222   Quart                KL-1225    Quart

KL-1223   Gallon               KL-1226    Gallon
